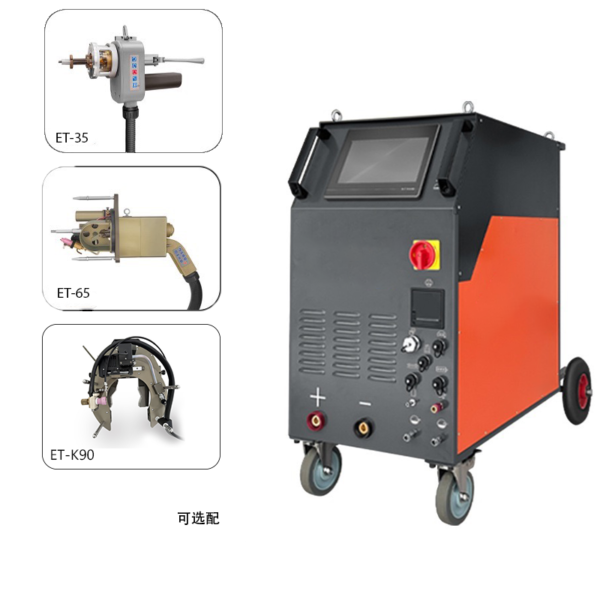

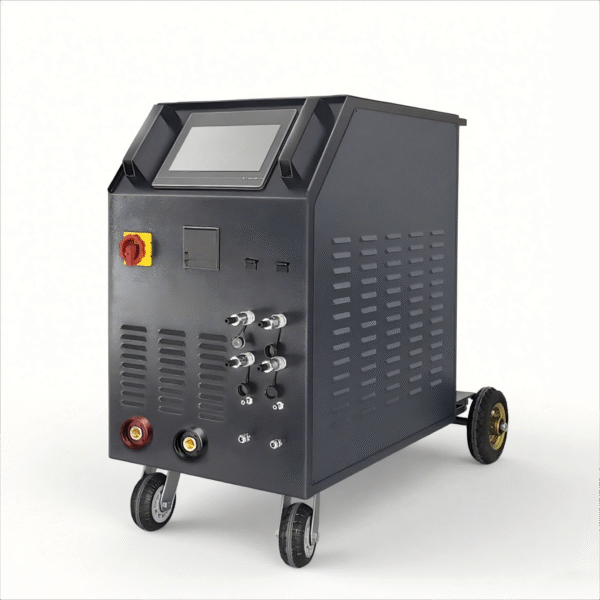

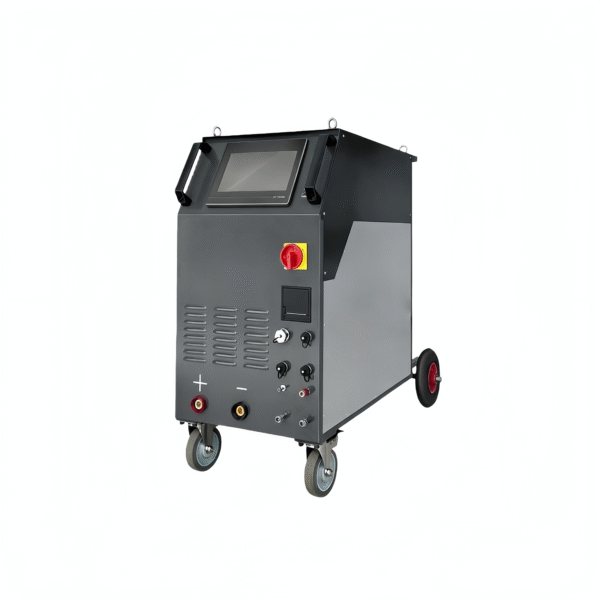

Open water-cooled argon arc welding machine
Imported core components and materials, durable, reliable, safe and precise
- Description
- Reviews (0)
- Product Attributes
Description
1. One machine can be used for multiple purposes and can be matched with a variety of welding guns.
2. Automatic programming, input pipe diameter, wall thickness, and automatically generate welding parameters.
3. Automatically adjust welding arc length to ensure quality operation.
4. Built-in monitoring and protection function, with tungsten pole, motor overload, current, water flow, argon gas monitoring, real-time alarm
The system automatically monitors, and historical alarm data can be exported and queried.
2. Automatic programming, input pipe diameter, wall thickness, and automatically generate welding parameters.
3. Automatically adjust welding arc length to ensure quality operation.
4. Built-in monitoring and protection function, with tungsten pole, motor overload, current, water flow, argon gas monitoring, real-time alarm
The system automatically monitors, and historical alarm data can be exported and queried.
Be the first to review “Open water-cooled argon arc welding machine”

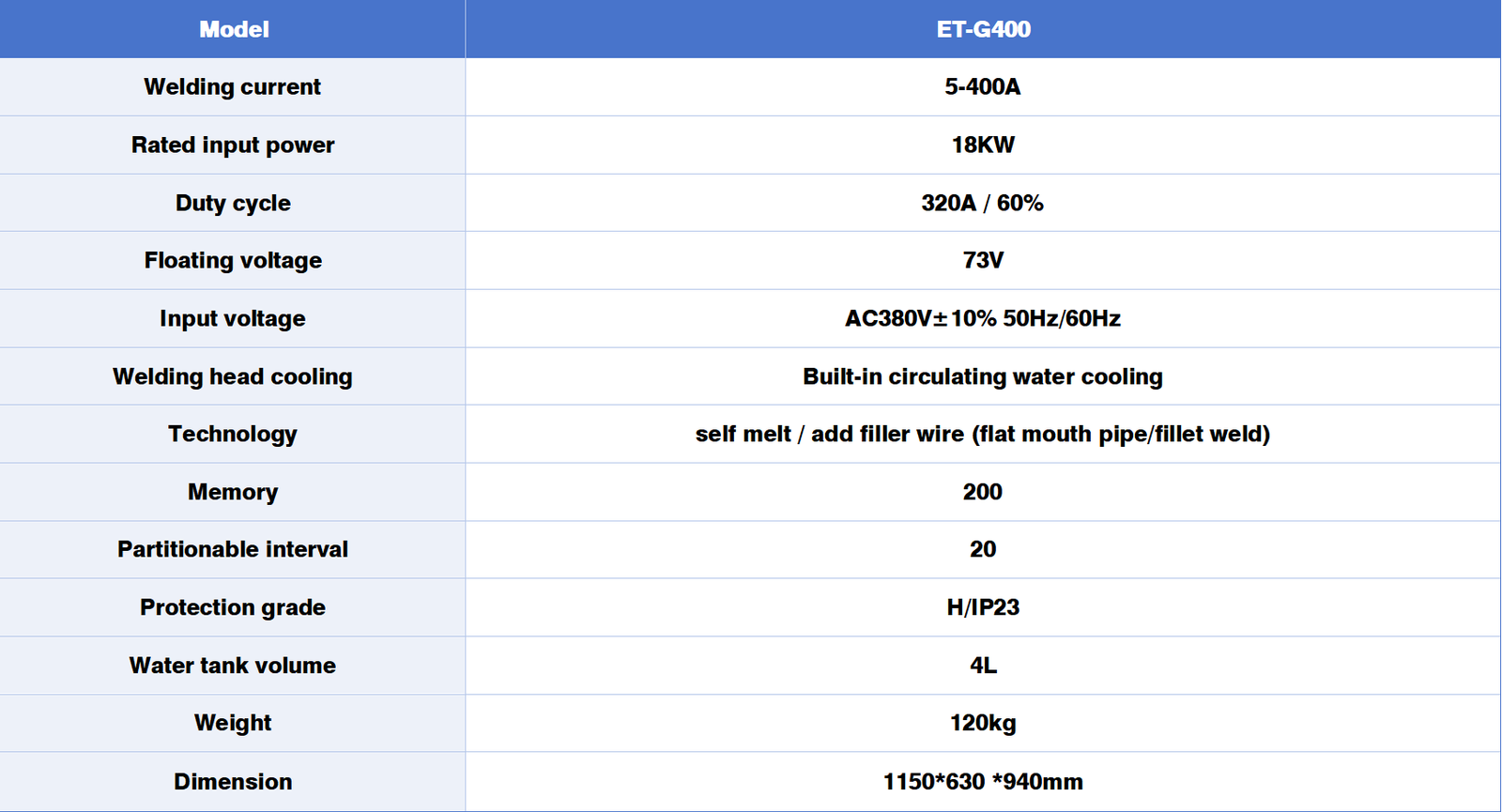

Equipment model: ET-G400
Welding current: 5-400A
Rated input power: 15.2kw
Duty cycle: 320A/60%
No-load voltage: 73V
Input voltage: AC380V#10%50Hz/60Hz
Gun cooling: Built-in circulating water cooling
Process: self-melting/wire addition (pipe flush/corner weld)
Storable programs: 200
Dividable intervals: 20
Insulation level/protection level: H/IP23
Protection function: overload, leakage, arc failure and tungsten needle short circuit protection, phase loss detection
Water tank capacity: 4L
Product weight: 120kg
Dimensions: length 1050*height 950*width 460m
Weight: 20000g
Principle: arc welding
