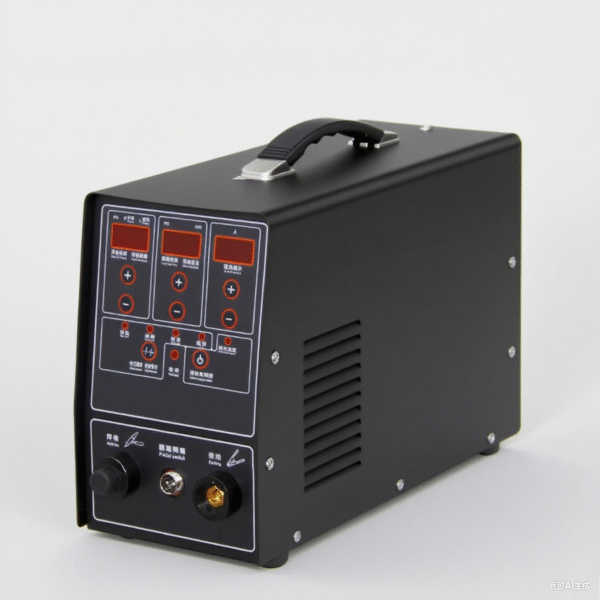

New high-precision metal repair welding machine
This machine can release the electric energy stored in the capacitor in an instant in the form of a pulse arc between the tungsten electrode and the workpiece. The extremely high temperature arc causes the workpiece and welding wire composed of metal materials to melt rapidly and fuse together to achieve the purpose of welding repair.
- Description
- Reviews (0)
- Product Attributes
Description
1. High welding strength: Complete metallurgical welding, the repaired part can be milled, filed and other post-processing.
2. High repair accuracy: Round wire repair material can be used for repair, the original reference surface will not be lost, there is less excess solder, and the later shaping is easy.
The minimum repair amount is 0.1mm (using a repair material with a diameter of 0.1mm).
3. Fast repair speed: The fastest repair amount can reach 200mm6/min.
4. Small damage to the substrate: The heating point is small and will not cause annealing deformation of the substrate.
5. Reasonable power distribution: Using microcomputer chip control, materials of various diameters can obtain accurate current.
6. Large voltage adaptation range: Using a switching power supply, when the voltage changes within the range of ±20%, the machine can still ensure normal operation and maintain a stable output power.
7. Convenient electrical connection: Equipped with a quick connector, it can be easily connected and installed.
2. High repair accuracy: Round wire repair material can be used for repair, the original reference surface will not be lost, there is less excess solder, and the later shaping is easy.
The minimum repair amount is 0.1mm (using a repair material with a diameter of 0.1mm).
3. Fast repair speed: The fastest repair amount can reach 200mm6/min.
4. Small damage to the substrate: The heating point is small and will not cause annealing deformation of the substrate.
5. Reasonable power distribution: Using microcomputer chip control, materials of various diameters can obtain accurate current.
6. Large voltage adaptation range: Using a switching power supply, when the voltage changes within the range of ±20%, the machine can still ensure normal operation and maintain a stable output power.
7. Convenient electrical connection: Equipped with a quick connector, it can be easily connected and installed.
Playlist
2 Videos
Be the first to review “New high-precision metal repair welding machine”
Power supply: single-phase 220V±15% 50/60Hz
Power consumption: 10-2000va
Instantaneous maximum power: greater than 60KW
Current output: 5-500A
Frequency selection: welding frequency 1-200ms, interval frequency 200-999ms
Mode selection: single point, continuous, simple (for novices), solder mask (optional)
Host volume: (430×195×270)mm
Host weight: 13.5Kg
Packaging size: (525×315×395)mm
Weight: 18.5kg
