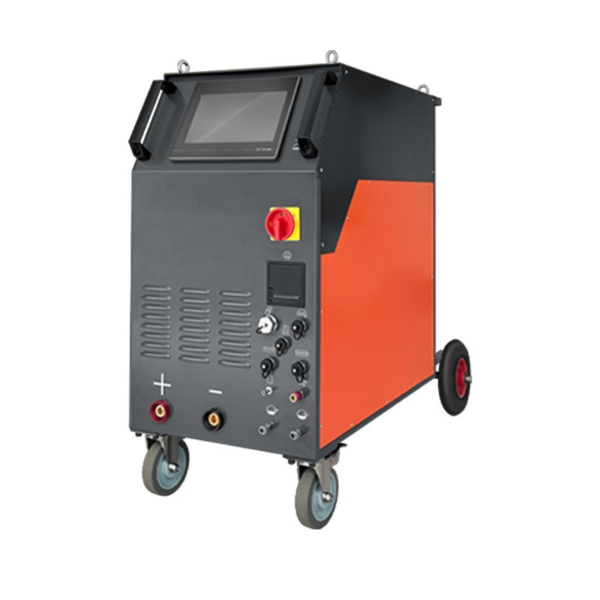

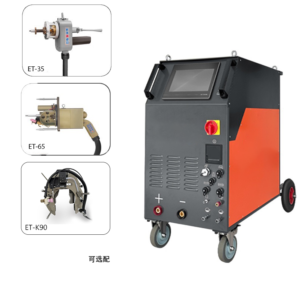

Open water-cooled argon arc welding machine
Imported core components and materials, durable, reliable, safe and precise
- Description
- Reviews (0)
- Product Attributes
Description

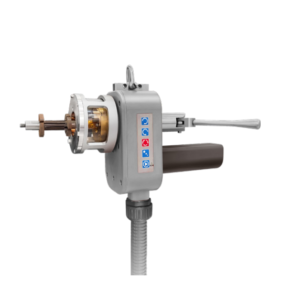

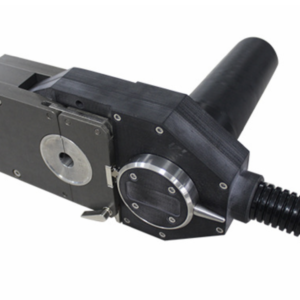

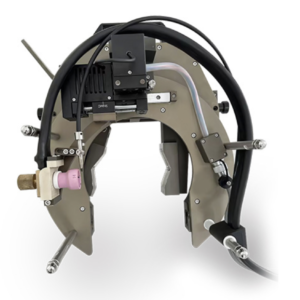

1. One machine can be used for multiple purposes and can be matched with a variety of welding guns.
2. Automatic programming, input pipe diameter, wall thickness, and automatically generate welding parameters.
3. Automatically adjust welding arc length to ensure quality operation.
4. Built-in monitoring and protection function, with tungsten pole, motor overload, current, water flow, argon gas monitoring, real-time alarm
The system automatically monitors, and historical alarm data can be exported and queried.
Be the first to review “Open water-cooled argon arc welding machine”
Equipment model: ET-G400
Welding current: 5-400A
Rated input power: 15.2kw
Duty cycle: 320A/60%
No-load voltage: 73V
Input voltage: AC380V#10%50Hz/60Hz
Gun cooling: Built-in circulating water cooling
Process: self-melting/wire addition (pipe flush/corner weld)
Storable programs: 200
Dividable intervals: 20
Insulation level/protection level: H/IP23
Protection function: overload, leakage, arc failure and tungsten needle short circuit protection, phase loss detection
Water tank capacity: 4L
Product weight: 120kg
Dimensions: length 1050*height 950*width 460m
Weight: 20000g
Principle: arc welding
